- Quick Specs
-
- Catalog Number
-
CSB20AC3W
Vendor Code PAS
- Manufacturer
- Legrand-Pass & Seymour
- Manufacturer's Part Number
- CSB20AC3W
- Description
-
20A 120/277VAC B+S Wire Comm 3W SW W

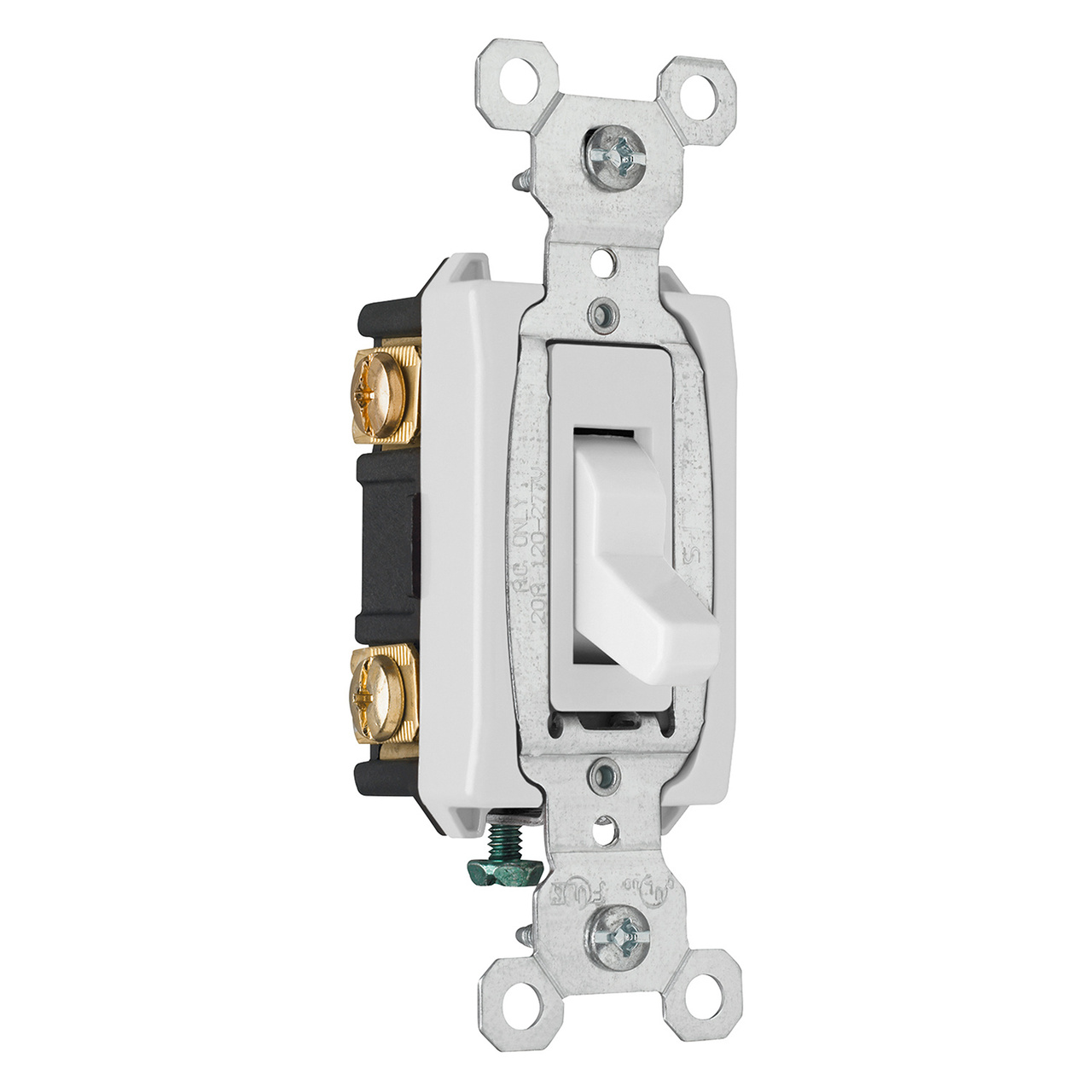

Toggle Switch, 2 Poles, 3 Ways, 20 A, 120/277 V Ac, Nylon Material, Silver Cadmium Oxide Contact Material, White, Grounding Connection, Wall Mount, 1.320 (L) X 1.073 (W) X 3.281 (H) In, -40 °C Operating Temperature, +115 °C Operating Temperature, 0.19 LB
- Slang Terms
-
Suggest a New Term
- Categories
-
Gen Purpose Wiring Devices -
Gen Purpose Switches
Mark as Incorrect
Suggest a New Category
- Classification
-
Industrial Receptacles
- UNSPSC
-
N/A
- UPC/GTIN
-
785007126297 / 00785007126297
- Weight per unit
-
0.1893 (lbs/each)
- Price & Packaging
-
- Minimum Order Quantity
- 1
- Unit
-
$9.35 (Each)
-
Carton
-
$93.50 (Per 10)
- Standard Packaging
-
$467.50 (Per 50)
- Resources
-
- Images
-
-
-
CSB20AC3W
- Large Image
-
-
CSB20AC3W
- Small Image
-
-
CSB20AC3W
- Large Image
- Brochures
-
-
-
CSB20AC3W
- Brochure
- Other Links
-
-
-
CSB20AC3W
- Other
-
-
CSB20AC3W
- Other
-
-
CSB20AC3W
- Other
-
-
CSB20AC3W
- Other
- Attachments
-
-
-
CSB20AC3W
- Specification Sheet
Suggest Substitute Item
Edit Mode: Please login to suggest improvements for this item.
Close
Thank you for your suggestions!
We appreciate your assistance in improving our software. It helps us serve you even better!
Edit Mode: Please login to suggest improvements for this item.
Close
- Features
-
- Current Rating
-
20 A
- Voltage Rating
-
120/277 V ac
- Material
-
Nylon
- amperage rating
-
20
- Poles
-
3-way
- insulation
-
False
- connection
-
Side Wire or external screw-pressure plate
- Material, Color, and Finish
-
- Contact Material
-
Silver Cadmium Oxide
- Color
-
White
- Finish
-
Matte
- Dimensions and Weight
-
- Size
-
3.3"
- Descriptions
-
- Product Type
-
Toggle Switch
- Special Features
-
Back & Side Wire;Locking Support;One Piece Brass Alloy Contact Arm
- Long Description
-
Toggle Switch, 2 Poles, 3 Ways, 20 A, 120/277 V ac, Nylon Material, Silver Cadmium Oxide Contact Material, White, Grounding Connection, Wall Mount, 1.320 (L) x 1.073 (W) x 3.281 (H) in, -40 °C Operating Temperature, +115 °C Operating Temperature, 0.19 lb
- Features
-
Construction 3way Switch, Back & Side Wire, 20amp 120/277volt, White.
- Short Description
-
20 A, 120/277 VAC, Toggle Switch, White, 4 Poles, 4 Ways, B&S Wire
- Description
-
20A 120/277VAC B+S WIRE COMM 3W SW W
- extra long description
-
P&S CSB20AC3W 20A 120/277VAC B+S WI
- Additional Information
-
- Number of Ways
-
3
- Connection Type
-
Grounding
- actuator type
-
Toggle
- Mounting Type
-
Wall Mount
- dimensions
-
1.320 (L) x 1.073 (W) x 3.281 (H) in
- Minimum Operating Temperature
-
-40 °C
- Maximum Operating Temperature
-
+115 °c
- Standards Met
-
RoHS Compliant;UL Listed File Number E140597;UL20;Federal Specification WS896;cULus Listed File Number LR17446;CSA-C22.2 No. 111
- package quantity
-
10 CT;50 PK
- Voltage
-
120/277 V
- Degree of Protection
-
1500V Dielectric Withstand Voltage
- action
-
4P
- indoor/outdoor
-
Indoor
- Contact Configuration
-
One piece brass alloy contact arm
- Contact Rating
-
Oversized silver alloy contacts
- Switch Type
-
Toggle
- Manufacturer Information
-
- Brand
-
Pass and Seymour
- Manufacturers Part Number
-
CSB20AC3W
- GTIN
-
00785007126297
- UPC
-
785007126297
- Taxonomies, Classifications, and Categories
-
- Category Description
-
Industrial receptacles
- Type
-
SWITCH
- Trade Size
-
- Amperage
-
20.0
- Packaging
-
- Weight
-
0.19 lb
- Weight per each
-
0.1893
- Carton
-
10
- Package
-
50
- Uses, Certifications, and Standards
-
- nema rating
-
NEMA WD-1;NEMA WD-6
- Application
-
Commercial
- standard
-
CULUS, FEDSPEC, UL Listed E140597, Standard UL20, FedSpec WS896, Flammability Rating UL94 V2
- Mounting
-
WALL
Edit Mode: Please login to suggest improvements for this item.
Close
Compare ( items) (Up to 4)
Compare
(Minimum 2)
Jump To:
Substitutes
Substitutes are practically identical items. The following can be used in place of CSB20AC3W.
Nacogdoches Availability:
In Stock
Total Availability:
Access Denied
To use this feature, you need to
apply for a Customer Account with Elliott Electric Supply.
Access Denied
To use this feature, you need to
apply for a Customer Account with Elliott Electric Supply.
Please Contact the account administrator for access to the Quote Feature
Please Contact the account administrator for access to the Custom List Feature
Please Contact the account administrator for access to the Inventory Feature
Please Contact the account administrator for access to the Custom Part Feature
Login is required for access to this feature
Feature is unavailable while in Quote Mode.
Access Denied
To use this feature, you need to
apply for a Customer Account with Elliott Electric Supply.
Access Denied
To use this feature, you need to
apply for a Customer Account with Elliott Electric Supply.
Please Contact the account administrator for access to the Quote Feature
Please Contact the account administrator for access to the Custom List Feature
Please Contact the account administrator for access to the Inventory Feature
Please Contact the account administrator for access to the Custom Part Feature
Login is required for access to this feature
Feature is unavailable while in Quote Mode.
Similar Items
Similar items are close alternatives to CSB20AC3W, though they may not be 100% alike.
Nacogdoches Availability:
In Stock
Total Availability:
Access Denied
To use this feature, you need to
apply for a Customer Account with Elliott Electric Supply.
Access Denied
To use this feature, you need to
apply for a Customer Account with Elliott Electric Supply.
Please Contact the account administrator for access to the Quote Feature
Please Contact the account administrator for access to the Custom List Feature
Please Contact the account administrator for access to the Inventory Feature
Please Contact the account administrator for access to the Custom Part Feature
Login is required for access to this feature
Feature is unavailable while in Quote Mode.
Access Denied
To use this feature, you need to
apply for a Customer Account with Elliott Electric Supply.
Access Denied
To use this feature, you need to
apply for a Customer Account with Elliott Electric Supply.
Please Contact the account administrator for access to the Quote Feature
Please Contact the account administrator for access to the Custom List Feature
Please Contact the account administrator for access to the Inventory Feature
Please Contact the account administrator for access to the Custom Part Feature
Login is required for access to this feature
Feature is unavailable while in Quote Mode.
Nacogdoches Availability:
Out Of Stock
Total Availability:
Book Price
$ -
Request Quote
Call nearest store for Item Price
Call nearest store for Item Price
Nacogdoches Availability:
Out Of Stock
Total Availability:
Book Price
$ -
Request Quote
Call nearest store for Item Price
Call nearest store for Item Price
Nacogdoches Availability:
Out Of Stock
Total Availability:
Book Price
$ -
Request Quote
Call nearest store for Item Price
Call nearest store for Item Price
Nacogdoches Availability:
Out Of Stock
Total Availability:
Access Denied
To use this feature, you need to
apply for a Customer Account with Elliott Electric Supply.
Access Denied
To use this feature, you need to
apply for a Customer Account with Elliott Electric Supply.
Please Contact the account administrator for access to the Quote Feature
Please Contact the account administrator for access to the Custom List Feature
Please Contact the account administrator for access to the Inventory Feature
Please Contact the account administrator for access to the Custom Part Feature
Login is required for access to this feature
Feature is unavailable while in Quote Mode.
Access Denied
To use this feature, you need to
apply for a Customer Account with Elliott Electric Supply.
Access Denied
To use this feature, you need to
apply for a Customer Account with Elliott Electric Supply.
Please Contact the account administrator for access to the Quote Feature
Please Contact the account administrator for access to the Custom List Feature
Please Contact the account administrator for access to the Inventory Feature
Please Contact the account administrator for access to the Custom Part Feature
Login is required for access to this feature
Feature is unavailable while in Quote Mode.
Nacogdoches Availability:
Out Of Stock
Total Availability:
Access Denied
To use this feature, you need to
apply for a Customer Account with Elliott Electric Supply.
Access Denied
To use this feature, you need to
apply for a Customer Account with Elliott Electric Supply.
Please Contact the account administrator for access to the Quote Feature
Please Contact the account administrator for access to the Custom List Feature
Please Contact the account administrator for access to the Inventory Feature
Please Contact the account administrator for access to the Custom Part Feature
Login is required for access to this feature
Feature is unavailable while in Quote Mode.
Access Denied
To use this feature, you need to
apply for a Customer Account with Elliott Electric Supply.
Access Denied
To use this feature, you need to
apply for a Customer Account with Elliott Electric Supply.
Please Contact the account administrator for access to the Quote Feature
Please Contact the account administrator for access to the Custom List Feature
Please Contact the account administrator for access to the Inventory Feature
Please Contact the account administrator for access to the Custom Part Feature
Login is required for access to this feature
Feature is unavailable while in Quote Mode.
Cross Referenced
These items are similar to CSB20AC3W but are not currently available from Elliott Electric Supply.
| Part # |
MFR/Brand |
GTIN |
| CSB320BW |
Bryant Electric |
00781786737907 |
| CSB320W |
Eaton Wiring Devices |
00032664559143 |
| CS315W |
Eaton Wiring Devices |
00032664487804 |
| 83200-W |
Enerlites |
883951412135 |
| 4D217 |
GENERAL ELECTRIC |
n/a |
| CS1223W |
GENERAL ELECTRIC |
n/a |
| HBLCS1223W |
GENERAL ELECTRIC |
n/a |
| CSB320W |
Hubbell Wiring Device-Kellems |
00783585154244 |
| 4093W |
Hubbell Wiring Device-Kellems |
n/a |
| CSB3-20W |
Leviton |
00078477240328 |
| CSB20AC3-W |
Legrand Pass & Seymour |
00785007126297 |
