- Features
-
- Current Rating
-
30 A
- Voltage Rating
-
600 V ac
- Poles
-
3
- amperage rating
-
30
- connection
-
Side & Back Wired
- actuator
-
Toggle
- Dimensions and Weight
-
- Size
-
1.7538" Depth x 1.825" Width x 2.375" Height
- Descriptions
-
- Product Type
-

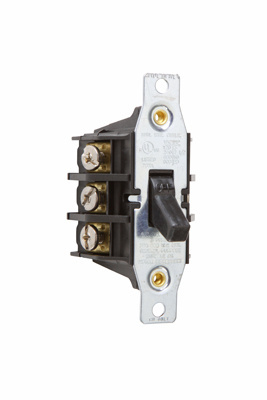

Manual Control Switch
- Description
-
30A 3P 3 PH AC MOTOR
- Long Description
-
Manual Control Switch, 3 Poles, 30 A, 600 V ac, 1.7538 (L) x 1.825 (W) x 2.375 (H) in, Box Mount, -40 °C Operating Temperature, +75 °C Operating Temperature, Toggle Actuator, 0.335 lb
- Features
-
Three Pole, Three Phase AC Manual Motor Controller, suitable as Motor Disconnect - 10KA @ 600VAC, 30A max. Class J Fuse.
- Short Description
-
Three Pole Three Phase AC Manual Controller
- extra long description
-
P&S 7803MD 30A 3P 3 PH AC MOTOR
- Special Features
-
Three Pole, Three Phase AC Manual Motor Controller, suitable as Motor Disconnect
- Additional Information
-
- dimensions
-
1.7538 (L) x 1.825 (W) x 2.375 (H) in
- Mounting Type
-
Box Mount
- Minimum Operating Temperature
-
-40 °C
- Maximum Operating Temperature
-
+75 °C
- actuator type
-
Toggle
- package quantity
-
1 CA;10 PK
- Standards Met
-
CSA Listed;UL Listed
- load
-
30A
- operating cycles
-
50000
- Voltage
-
600.0 V
- Manufacturer Information
-
- Brand
-
LEGRAND-PASS & SEYMOUR
- Manufacturers Part Number
-
7803MD
- GTIN
-
00785007267686
- UPC
-
785007267686
- Taxonomies, Classifications, and Categories
-
- Category Description
-
POWER TOOLS
- Type
-
Manual Controller
- Trade Size
-
- Amperage
-
30.0
- Packaging
-
- Weight
-
0.335 lb
- Weight per each
-
0.335
- Carton
-
1
- Package
-
10
- Uses, Certifications, and Standards
-
- Application
-
Commercial;Industrial
- Frequency Rating
-
60Hz
- Mounting
-
BOX
- standard
-
CULUS, CSA Listed, UL Listed
- Operating Temperature
-
Maximum continuos +75°C, minimum -40°C
- environmental conditions
-
UL94 V2
