2097HGRED

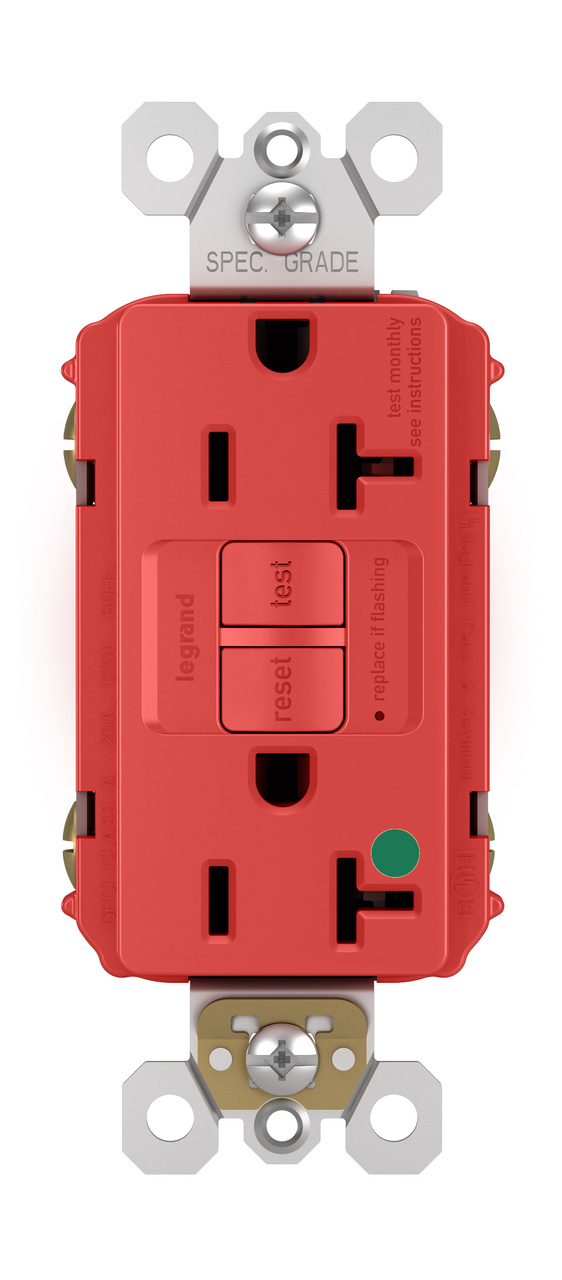

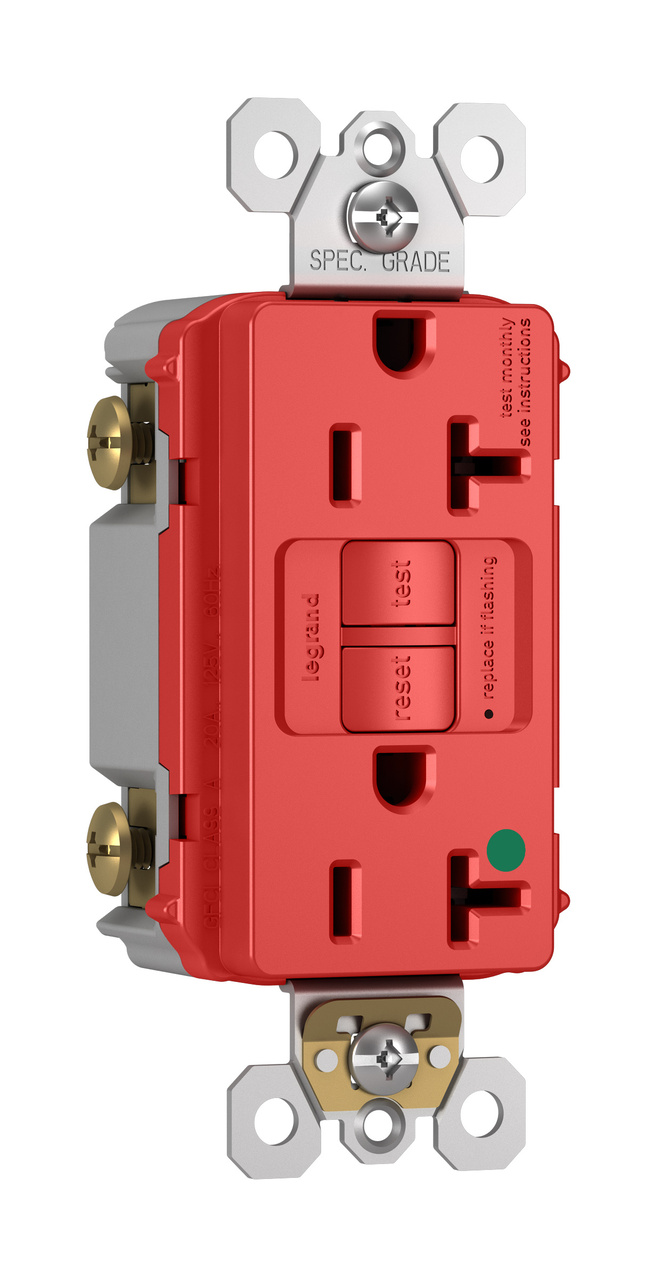

2097HGRED - Self Test Gfci Recp HG 20A 12 RD

Legrand-Pass & Seymour

  • $68.03 (Each)

  • $68.03 (Each)

  • $680.30 (Per 10)

In-Stock: 144 available at other locations ( find a store with stock)

Buy Now
QTY:
Each
Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!
  Edit Mode: Please login to suggest improvements for this item. Close
Help Improve Our Data
Quick Specs
Catalog Number
2097HGRED
Manufacturer
Legrand-Pass & Seymour
Manufacturer's Part Number
2097-HGRED
Description
Self Test Gfci Recp HG 20A 12 RD
Self-Test Duplex Receptacle, 20 A, 125 V, 2 Poles, #14 to #10 Awg Compatible Wire Size, Control Circuit Actuator, Back and Side Wired Connection, 60 HZ, 1.73 In Width, 4.20 In Height, Thermoplatic Material, Red, 0.025 Sec Trip Time, Impact Resistant, 0.2800 LB
Slang Terms

Suggest a New Term
Categories
Gen Purpose Wiring Devices - Gen Purpose Recept & Surge Pro Mark as Incorrect
Suggest a New Category
Classification
Residential Gfci Devices
UNSPSC
39121406 - Electrical receptacles
UPC/EAN/GTIN
785007035971 / 0785007035971 / 00785007035971
Weight per unit
0.275 (lbs/each)
Price & Packaging
Minimum Order Quantity
1
Unit
$68.03 (Each)
Standard Packaging
$680.30 (Per 10)
Stock Availability
Nacogdoches
0 (Find nearest stock)
All Stores
144
Resources
Images


2097HGRED - Large Image

2097HGRED - Small Image

2097HGRED - Large Image

2097HGRED - Large Image

2097HGRED - Video
Other Links


2097HGRED - Other

2097HGRED - Other

2097HGRED - Other

2097HGRED - Other

2097HGRED - Other
Brochures


2097HGRED - Brochure
Suggest Substitute Item
Help Improve Our Data
  Edit Mode: Please login to suggest improvements for this item. Close
Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!
  Edit Mode: Please login to suggest improvements for this item. Close
Help Improve Our Data
Features
Actuator
Control Circuit
Amperage Rating
20
Connection
Back and side wire
Current Rating
20 A
Interrupt Rating
4 to 6 mA
Material
Thermoplatic
Number Of Wires
3
Poles
2
Voltage Rating
125
Material, Color, and Finish
Color
Red
Finish
Matte
Dimensions and Weight
Height
4.20 in
Length
1.03
Width
1.73
Descriptions
Description
SELF TEST GFCI RECP HG 20A 12 RD
Extra Long Description
P&S 2097HGRED SELF-TEST GFCI HOS GR
Features
Conducts an automatic test every three seconds, ensuring it's always ready to protect. If the device fails the test, the indicator light flashes to signal that the GFCI should be replaced. It also has our proven SafeLock(TM) Protection feature: if critical components are damaged and protection is lost, power to the receptacle is disconnected.
Long Description
Self-Test Duplex Receptacle, 20 A, 125 V, 2 Poles, #14 to #10 AWG Compatible Wire Size, Control Circuit Actuator, Back and Side Wired Connection, 60 Hz, 1.73 in Width, 4.20 in Height, Thermoplatic Material, Red, 0.025 sec Trip Time, Impact Resistant, 0.2800 lb
Product Type
Self-Test Duplex Receptacle
Short Description
20 A, 125 V, Self-Test Duplex Receptacle, Red
Special Features
20 Amp Feed-Thru Capacity
Additional Information
Actuator Type
Control Circuit
Compatible Wire Size
#14 to #10 AWG
Connection Type
Back and Side Wired
Indoor/Outdoor
Indoor
Media
Yes
Outlet Type
Hospital Grade, GFCI
Package Quantity
1 CT;10 PK
Receptacle Type
Self Test Duplex
Resistance Properties
Impact Resistant
Standards Met
cULus Listed;UL Listed;fsUL Listed;UL 94 v2;UL498;Federal Specifications
Trip Range
4 to 6 mA
Trip Time
0.025 sec
Trip Type
.025 Second Nominal
Voltage
125.0 V
Wall Plate Included
YES
Manufacturer Information
Brand
Pass & Seymour
Manufacturers Part Number
2097HGRED
GTIN
00785007035971
UPC
785007035971
Taxonomies, Classifications, and Categories
Category Description
Residential GFCI devices
Type
Outlet
Trade Size
Amperage
20.0
Packaging
Weight
0.2800 lb
Weight per each
0.275
Carton
1
Package
10
Uses, Certifications, and Standards
Application
Residential;Commercial
Environmental Conditions
95% Humidity, UL 94 V2
Frequency Rating
60 Hz
Nema Rating
5-15R
Operating Temperature
-35°C to +66°C
Standard
cULus
