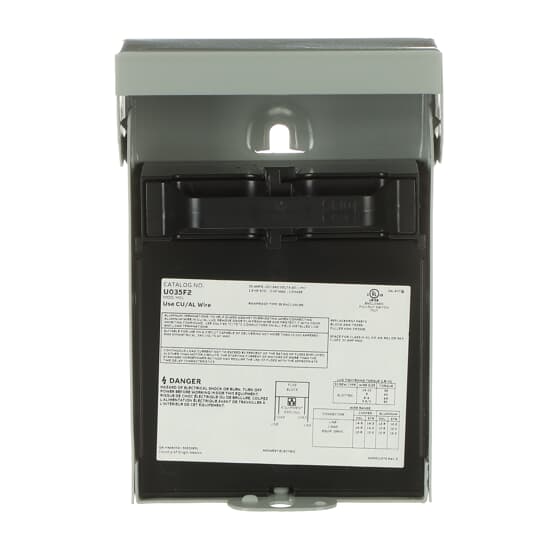

U035F2 - 30A GD Acd F Puller 3HP STL N3R

Midwest

$17.94 (Each)
$17.94 (Each)
$107.64 (Per 6)

Availability: Call for Availability

Buy Now

QTY:

Each

Overview
Specifications
Current Stock

Overview

Help Improve Our Data

Quick Specs

Catalog Number: U035F2 Vendor Code MID
Manufacturer: Midwest
Manufacturer's Part Number: U035F2
Description: 30A GD Acd F Puller 3HP STL N3R
Safety Switch, 30 A, 240 V, 3 Phases, 3 HP, Fusible Fuse, Metallic Material, #14 to #8 Awg (Solid);#14 to #3 Awg (Stranded Copper);#12 to #8 Awg (Solid);#12 to #3 Awg (Stranded Aluminum) Wire Size, 5 In Overall Length, 2-1/8 In Overall Width, 7 In Overall Height, Fusible
Slang Terms
Categories: Disconnect Safety Switches - Fusible Disconnect Safety Swit Mark as Incorrect
Classification: Temp. Power Panels & Accessories
UNSPSC: N/A
UPC/GTIN: 784567301021 / 00784567301021
Weight per unit: 2.5 (lbs/each)

Price & Packaging

Minimum Order Quantity: 1
Unit: $17.94 (Each)
Carton: $107.64 (Per 6)

Resources

Images
: U035F2 - Small Image
: U035F2 - Large Image
: U035F2 - Large Image
Attachments
: U035F2 - Specification Sheet
Brochures
: U035F2 - Brochure
Other Links
: U035F2 - Other
: U035F2 - Other
: U035F2 - Other

Help Improve Our Data

Specifications

Help Improve Our Data

Features

Current Rating: 30 A
Number of Phases: 3
Material: Metallic
Wire Size: #14 to #8 AWG (Solid);#14 to #3 AWG (Stranded Copper);#12 to #8 AWG (Solid);#12 to #3 AWG (Stranded Aluminum)
interrupt rating: 10000
Voltage Rating: 240
amperage rating: 30

Dimensions and Weight

Overall Length: 5 in
Size: 5 X 7

Descriptions

Product Type: Safety Switch
Long Description: Safety Switch, 30 A, 240 V, 3 Phases, 3 HP, Fusible Fuse, Metallic Material, #14 to #8 AWG (Solid);#14 to #3 AWG (Stranded Copper);#12 to #8 AWG (Solid);#12 to #3 AWG (Stranded Aluminum) Wire Size, 5 in Overall Length, 2-1/8 in Overall Width, 7 in Overall Height, Fusible
Short Description: Safety Switch, 30 A, 240 V
Special Features: Interrupting Capacity 10000 A
extra long description: MIDWEST U035F2 MW 30A GD ACD F PULL
Description: 30A GD ACD F PULLER 3HP STL N3R

Additional Information

Overall Width: 2-1/8 in
Overall Height: 7 in
Fuse Type: Fusible
Enclosure Type: Nema 3R
Fusible/Non Fusible: Fusible
Standards Met: UL Listed;cUL Listed
Made in USA: yes

Manufacturer Information

Manufacturers Part Number: U035F2
Brand: MIDWEST
GTIN: 00784567301021
UPC: 784567301021

Taxonomies, Classifications, and Categories

Category Description: TEMP. POWER PANELS & ACCESSORIES
Type: Fused Pull-Out AC Disconnect Switch

Packaging

Weight per each: 2.5
Carton: 6

Uses, Certifications, and Standards

Application: Residential
Enclosure: Metallic
Mounting: SURFACE
standard: UL/cUL Listed

Help Improve Our Data
