774000 - Toggle Switch, DPDT, (O)-F-(O), Screw

Ideal

$26.38 (Each)
$26.38 (Each)

Availability: Call for Availability

Buy Now

QTY:

Each

Overview
Specifications
Current Stock
Add-On Items
Alternate Items

Overview

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Quick Specs

Catalog Number: 774000 Vendor Code IDE
Manufacturer: Ideal
Manufacturer's Part Number: 774000
Description: Toggle Switch, DPDT, (O)-F-(O), Screw
Ideal, Toggle Switch, Heavy-Duty, (On)-Off-(On), Voltage Rating: 125, 227 Vac, Number Of Poles: 2, Amperage Rating: 20, 10 Amp, Action: DPDT, Connection: Screw, 6 Terminals, Actuator: Toggle, Contact Rating: Factory Tested 100000 Cycles to 21 Amp 14.8 VDC DC Rating, Size: 1.130 In Length X 0.760 In Width X 0.800 In Height, Mounting: 1/2 In Hole Diameter, Operating Cycles: 100000 Cycles Mechanical Life, Operating Temperature: 32 to 185 Deg F, Dielectric Strength: 1500 V, Finish: Solid Brass/Nickel-Plated Bu
Slang Terms: Suggest a New Term
Categories: Gen Purpose Wiring Devices - Gen Purpose Switches Mark as Incorrect
Suggest a New Category
Classification: Toggle Switches
UNSPSC: N/A
UPC/EAN/GTIN: 783250573547
Weight per unit: 0.1 L

Price & Packaging

Minimum Order Quantity: 1
Unit: $26.38 (Each)

Resources

Images
: 774000 - Small Image
: 774000 - Large Image

Suggest Substitute Item

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Specifications

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Features

Voltage Rating: 125, 227
Poles: 2
amperage rating: 20,10
connection: Screw, 6 Terminals

Dimensions and Weight

Width: 0.760
Height: 0.800

Descriptions

Long Description: IDEAL, Toggle Switch, Heavy-Duty, (On)-Off-(On), Voltage Rating: 125, 227 VAC, Number Of Poles: 2, Amperage Rating: 20, 10 AMP, Action: DPDT, Connection: Screw, 6 Terminals, Actuator: Toggle, Contact Rating: Factory Tested 100000 Cycles To 21 AMP 14.8 VDC DC Rating, Size: 1.130 IN Length X 0.760 IN Width X 0.800 IN Height, Mounting: 1/2 IN Hole Diameter, Operating Cycles: 100000 Cycles Mechanical Life, Operating Temperature: 32 To 185 DEG F, Dielectric Strength: 1500 V, Finish: Solid Brass/Nickel-Plated Bu
Special Features: 1/2 IN Diameter Mounting Hole;Bulk Packaging Of 100 Available Upon Request;DC Rating: Factory Tested 100000 Cycles To 21 AMP 14.8 VDC;Dielectric Strength: 1500 V;Features: Great For Power Tool And Motor Control Switch Applications;Finish: Solid Brass/Nickel-Plated Bushings;Hp Rating: 1-1/2 HP At 125 To 250 VAC;Mechanical Life: 100000 Cycles;Operating Temperature: 32 DEG F To 185 DEG F (0 DEG C To 85 DEG C);Rugged Long-Wearing Solid Brass/Nickel-Plated Bushings
Product Type: Switch, TGL, DPDT, (O)F(O), SCRW
Features: Great for power tool and motor control switch applicationsRugged long-wearing solid brass/nickel-plated bushings1/2 in. diameter mounting holeDielectric Strength: 1500VMechanical Life: 100,000 cyclesOperating Temperature: 32°F to 185°F (0°C to 85°C)DC?Rating: Factory tested 100,000 cycles to 21 Amp 14.8 VDC
Description: TOGGLE SWITCH, DPDT, (O)-F-(O), SCREW
extra long description: IDEAL 774000 SWITCH,TGL,DPDT,(O)F(O

Additional Information

operating cycles: 100000
action: DPDT
Contact Rating: Factory Tested 100000 Cycles To 21 AMP 14.8 VDC DC Rating
Switch Type: Toggle

Manufacturer Information

Brand: Ideal
Manufacturers Part Number: 774000

Taxonomies, Classifications, and Categories

Type: Heavy-Duty, (On)-Off-(On)
Category Description: TOGGLE SWITCHES

Packaging

Weight per each: 0
Carton: 1

Uses, Certifications, and Standards

Mounting: 1/2 IN Hole Diameter
standard: CSA, RU Listed, RoHS
Application: For Power Tool And Motor Control Switch Applications

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Current Stock

You must have an account to view stock levels

Alternate Items

These alternate items can be purchased instead of 774000.

Jump To:

Toggle Switch, 2 Poles, 10 A;20 A, 125/227 V Ac, DPDT Contact Configuration, Sol...

Our Part #: 774016
Nacogdoches Availability: Out Of Stock
Total Availability: In Stock

MFR Part #: 774016
Manufacturer: Ideal
Find: Similar Items
Pkg Sizes: 1 Each ($19.35) ·

774016 - Ideal

Nacogdoches Availability: Out Of Stock

Total Availability: In Stock

Book Price

$19.35

Each

QTY:

Each

Add

Spec Sheet

QTY:

Each

Add

SWITCH,HDTGL,DPDT,O-F-O,SPD

MFR Part #: 774003
GTIN: 00783250573493

Manufacturer: IDEAL

Call our nearest location for pricing/availability.

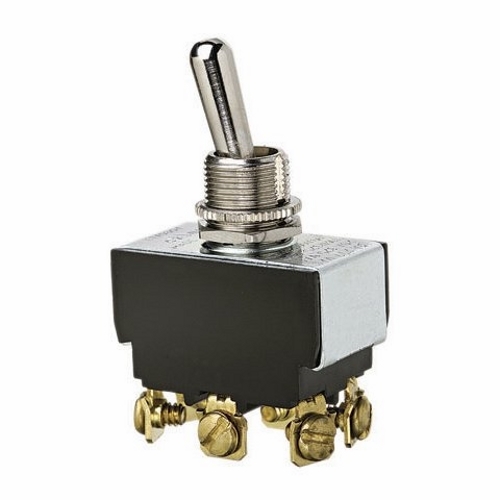

SWITCH,HDTGL,DPDT,O-O,SCREW
