L1630PW - Plug WT 30A 480V 3PH 3P4W H/L Yl

Eaton

$55.71 (Each)
$55.71 (Each)
$557.10 (Per 10)

Availability: Call for Availability

Buy Now

QTY:

Each

Overview
Specifications
Current Stock
Add-On Items
Alternate Items

Overview

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Quick Specs

Catalog Number: L1630PW Vendor Code EWD
Manufacturer: Eaton
Manufacturer's Part Number: L1630PW
Description: Plug WT 30A 480V 3PH 3P4W H/L Yl
Locking Device Turnlock Plug, 30 A, 480 V, 3 Poles, 4 Wires, Yellow (Handle), -40 °C Operating Temperature, +75 °C Operating Temperature, Screw Terminal, 2.49 In;0.43 to 1.15 In (Cord) Diameter, 5.42 In Length, #18 to #10 Awg Wire Size, 1 LB
Slang Terms: Suggest a New Term
Categories: Gen Purpose Wiring Devices - Plugs, Connectors, Inlets, Out Mark as Incorrect
Suggest a New Category
Classification: Nema Rated Turnlok Plugs, Connectors, & Recepticles
UNSPSC: 39121402 - Electrical plugs
UPC/GTIN: 040893642123 / 00040893642123
Weight per unit: 10 (lbs/each)

Price & Packaging

Minimum Order Quantity: 1
Unit: $55.71 (Each)
Standard Packaging: $557.10 (Per 10)

Resources

Images
: L1630PW - Large Image
: L1630PW - Large Image
: L1630PW - Small Image
: L1630PW - Video
Attachments
: L1630PW - Specification Sheet
Other Links
: L1630PW - Other

Suggest Substitute Item

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Specifications

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Features

Current Rating: 30 A
Number of Wires: 4
Material: Santoprene[T] Thermoplastic Elastomeric Over Polypropylene (Outer Shell);Nylon (Interior Body)
Terminal Type: Screw
Wire Size: #18 to #10 AWG

Material, Color, and Finish

Color: Yellow (Handle)

Dimensions and Weight

Diameter: 2.49 in;0.43 to 1.15 in (Cord)
Length: 5.42 in

Descriptions

Product Type: Locking Device Turnlock Plug
Description: PLUG WT 30A 480V 3PH 3P4W H/L YL
Long Description: Locking Device Turnlock Plug, 30 A, 480 V, 3 Poles, 4 Wires, Yellow (Handle), -40 °C Operating Temperature, +75 °C Operating Temperature, Screw Terminal, 2.49 in;0.43 to 1.15 in (Cord) Diameter, 5.42 in Length, #18 to #10 AWG Wire Size, 1 lb
Features: Industrial Specification Grade Locking Devices - Watertight Plug & Connector 30A, 3Ø 480V NEMA L16-30 3-Pole/4-Wire. Superior design and performance make Arrow Hart devices the ideal choice for industrial applications. Available in a wide range of NEMA and Non-NEMA configurations.
Short Description: 30 A, 480 V, Locking Device Turnlock Plug, Yellow (Handle)
Special Features: Watertight;Wiring Type Back Wire;3 Phase
extra long description: EWD L1630PW Plug WT 30A 480V 3PH 3P

Additional Information

Minimum Operating Temperature: -40 °C
Maximum Operating Temperature: +75 °C
package quantity: 1 ct
Standards Met: cULus Listed;NAFTA Compliant;RoHS Compliant
Made in USA: yes
media: Yes
dimensions: 6.7500 IN X 4.2500 IN X 4.0000 IN

Manufacturer Information

Brand: COOPER WIRING DEVICES
Manufacturers Part Number: L1630PW
GTIN: 00040893642123
UPC: 040893642123

Taxonomies, Classifications, and Categories

Category Description: NEMA RATED TURNLOK PLUGS, CONNECTORS, & RECEPTICLES
Type: Watertight locking plug

Packaging

Weight: 1 lb
Weight per each: 10
Carton: 1
Package: 10

Uses, Certifications, and Standards

Application: Industrial
nema rating: L16-30
standard: RoHS Compliant

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Current Stock

You must have an account to view stock levels

Alternate Items

These alternate items can be purchased instead of L1630PW.

Jump To:

Watertight Plug, 30 A, 480 V, 3 Poles, 4 Wires, Yellow, -40 °C Operating Tempera...

Our Part #: 28W76
Nacogdoches Availability: Out Of Stock
Total Availability: Out of Stock

MFR Part #: 28W76
Manufacturer: Molex LLC
Find: Similar Items
Pkg Sizes: 1 Each ($66.29) ·

28W76 - Molex LLC

Nacogdoches Availability: Out Of Stock

Total Availability: Out of Stock

Book Price

$66.29

Each

QTY:

Each

Add

Spec Sheet

QTY:

Each

Add

View Larger

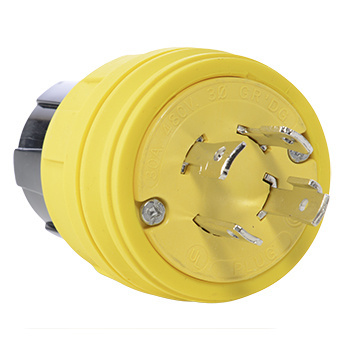

Locking Watertight Plug, 30AMP 3 480 Volt, Nema Configuration L16-30, Multipoint...

Our Part #: 28W76
Nacogdoches Availability: Out Of Stock
Total Availability: In Stock

MFR Part #: 28W76
Manufacturer: Pass & Seymour/Legrand
Find: Similar Items
Pkg Sizes: 10 ($593.30) ·

28W76 - Pass & Seymour/Legrand

Nacogdoches Availability: Out Of Stock

Total Availability: In Stock

Book Price

$59.33

Each

QTY:

Each

Add

Spec Sheet

QTY:

Each

Add

View Larger

Watertight Devices, Twist-Lock® Plug, 30A, 3 Phase 480V Ac, 3 Pole, 4 Wire, Ther...

Our Part #: HBL28W76
Nacogdoches Availability: Out Of Stock
Total Availability: In Stock

MFR Part #: HBL28W76
Manufacturer: Hubbell Wiring Devices
Find: Similar Items
Pkg Sizes: 10 ($1,281.90) ·

HBL28W76 - Hubbell Wiring Devices

Nacogdoches Availability: Out Of Stock

Total Availability: In Stock

Book Price

$128.19

Each

QTY:

Each

Add

Spec Sheet

QTY:

Each

Add

Cross Referenced

These items are similar to L1630PW but are not currently available from Elliott Electric Supply.

Part #	MFR/Brand	GTIN
L1630PW	Eaton Wiring Devices	00040893642123
2524-PW6P	Ericson	00782862825181
HBL28W76	Hubbell Wiring Device-Kellems	00783585131726
28W76	Leviton	00078477969038
28W76	Legrand Pass & Seymour	00785007033519
28W76	Woodhead	00786788712341
28W76H	Hubbell Wiring Device-Kellems	n/a
2524-PW	Ericson	n/a
