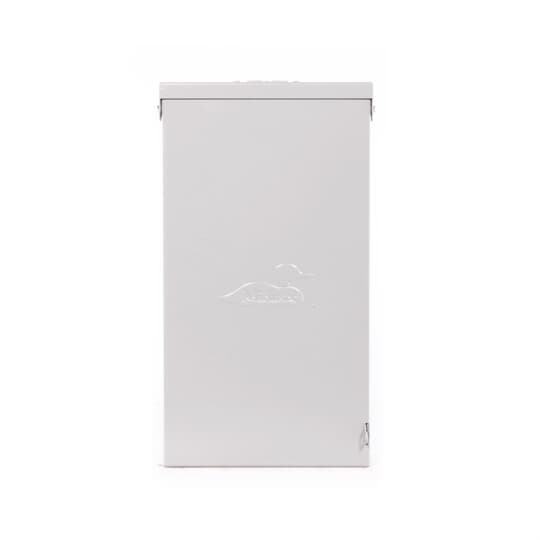

T3620 - Terminal Box 200A 14X21 3PH

Availability: Call for Availability

Buy Now

QTY:

Each

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Quick Specs

Catalog Number: T3620 Vendor Code MID
Manufacturer: Midwest
Manufacturer's Part Number: T3620
Description: Terminal Box 200A 14X21 3PH
Terminal Box, 200 A, 600 V Ac, (3) #1/0 Awg to 250 Kcmil;(3) #12 Awg to #1/0 Awg Compatible Wire Size, 14-1/2 (W) X 4-3/4 (D) X 21-1/2 (H) In, Steel, Zinc Coated, Lug Mount, 19 LB
Slang Terms: Suggest a New Term
Categories: Gen Purpose Wiring Devices - Misc Wiring Devices Mark as Incorrect
Suggest a New Category
Classification: Terminal Block Acessories
UNSPSC: 39121332 - Electrical junction box
UPC/GTIN: 784567575200 / 00784567575200
Weight per unit: 19 (lbs/each)

Price & Packaging

Resources

Edit Mode: Please login to suggest improvements for this item.

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Features

Material, Color, and Finish

Dimensions and Weight

Descriptions

extra long description: MIDWEST T3620 TERMINAL BOX 200A 14X
Product Type: Terminal Box
Long Description: Terminal Box, 200 A, 600 V ac, (3) #1/0 AWG to 250 kcmil;(3) #12 AWG to #1/0 AWG Compatible Wire Size, 14-1/2 (W) x 4-3/4 (D) x 21-1/2 (H) in, Steel, Zinc Coated, Lug Mount, 19 lb
Features: Steel material;14 inch x 21 inch size;polyester powder coated finish;(3) 1/0 awg to 250 kcmil, (3) 12 to 1/0 awg wire size;ul (canada and us) approval;lug mounting;nema 1/3r enclosure;200 ampere terminal current rating;600 vac 3-phase terminal voltage rating;number of bars 3;lugs per bar 6;dimension 14-1/2 inch w x 3-1/2 inch d x 21-1/2 inch h;application indoor and outdoor.
Short Description: Terminal Box, 200 A, 600 VAC, Steel, Zinc Coated
Description: TERMINAL BOX 200A 14X21 3PH
Special Features: Terminals accept copper or aluminum wire Factory installed terminal bars Wide range of concentric knockouts Door has stay open position or removes completely Wide range of terminals meet varied application requirements Padlock provisions to prevent unauthorized entry Completely factory assembled Durable, long-lasting construction Heavy zinc coated steel with electro-deposition paint finish Suitable for NEMA 3R and NEMA 1 installations Stationary mounted terminations make circuit tracing much easier Hub pro

Additional Information

Compatible Wire Size: (3) #1/0 AWG to 250 kcmil;(3) #12 AWG to #1/0 AWG
dimensions: 14-1/2 (W) x 4-3/4 (D) x 21-1/2 (H) in
Mounting Type: Lug Mount
package quantity: 1 CA
Cable Entry: Knockout Code (AA): 1-1/2, 2, 2-1/2 IN; Knockout Code (B): 1, 1-1/4, 1-1/2 IN; Knockout Code (C): 1-1/4, 1-1/2, 2 IN; Knockout Code (E): 3/4 IN; Knockout Code (Q): 1 IN
Knockouts: Yes
