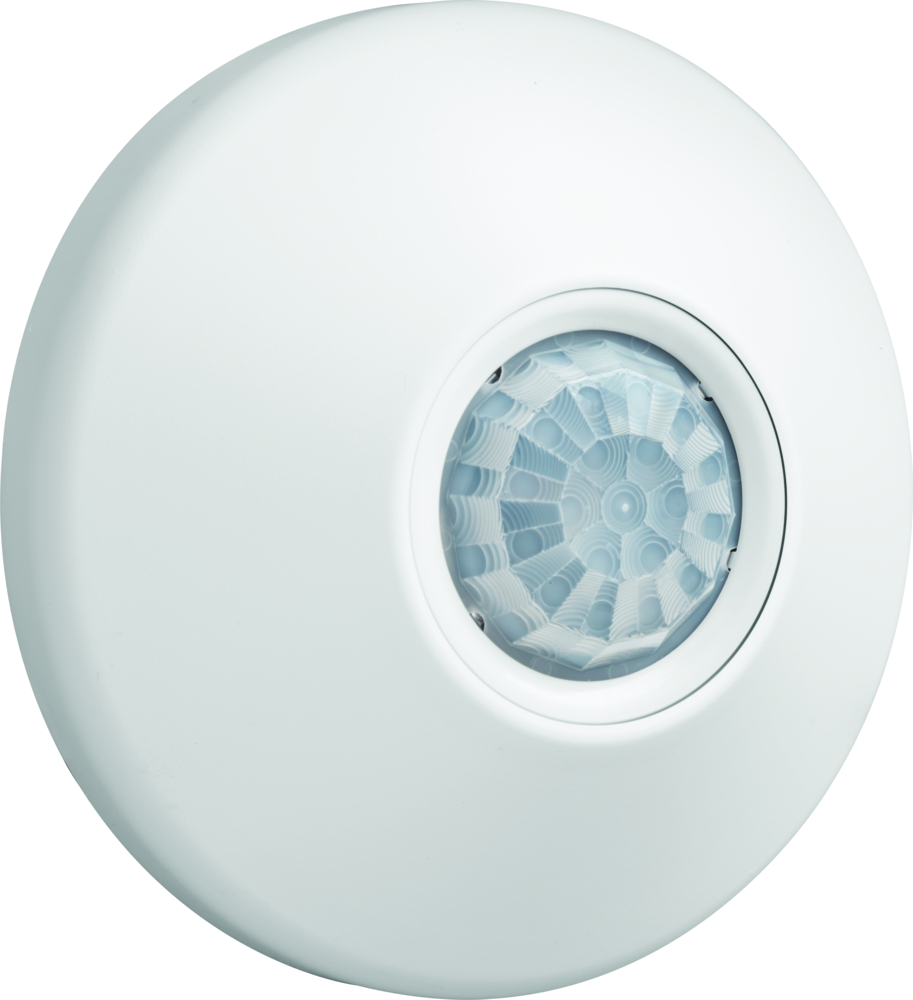

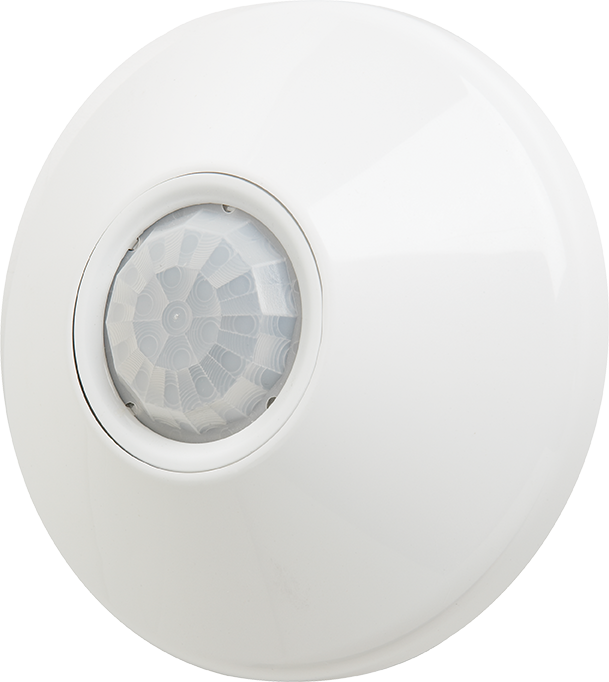

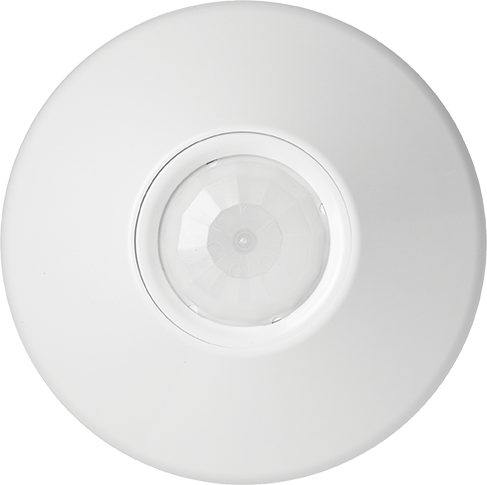

CMR9 - Ceiling MNT 360 Sensor Line Volt Pir

Sensorswitch

$147.70 (Each)
$147.70 (Each)

Availability: Call for Availability

Buy Now

QTY:

Each

Also in stock

$76.50Each

CI355

Wattstopper
Pir Ceiling Occ Sensor 100-347 Vac Center MNT 360

View Item or Compare

Overview
Specifications
Current Stock
Add-On Items
Alternate Items

Overview

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Quick Specs

Catalog Number: CMR9 Vendor Code LIT
Manufacturer: Sensorswitch
Manufacturer's Part Number: CMR9
Description: Ceiling MNT 360 Sensor Line Volt Pir
Occupancy Sensor, 120/277 V Ac, 800 W (120 V Ac);1200 W (277 V Ac);1500 W (347 V Ac), 360 ° Coverage, Relay Switch, 4.55 In (Dia.) Width, 1.55 In Height, White, 5 Yr Warranty, 6 Oz
Slang Terms: Suggest a New Term
Categories: Lighting Occupancy Sensors & M - Lighting Occupancy Sensors Mark as Incorrect
Suggest a New Category
Classification: Commercial Dimmers, Motion Sensors, & Photo Cells
UNSPSC: N/A
UPC/GTIN: 745975808281 / 00745975808281
Weight per unit: 0.38 (lbs/each)

Price & Packaging

Minimum Order Quantity: 1
Unit: $147.70 (Each)

Resources

Other Links
: CMR9 - Other
: CMR9 - Other
: CMR9 - Other
: CMR9 - Other
: CMR9 - Other
: CMR9 - Other
: CMR9 - Other
: CMR9 - Other
Images
: CMR9 - Large Image
: CMR9 - Large Image
: CMR9 - Large Image
: CMR9 - Large Image
: CMR9 - Small Image
: CMR9 - Large Image
: CMR9 - Large Image
: CMR9 - Video
Attachments
: CMR9 - Specification Sheet
Brochures
: CMR9 - Brochure
360 Images
: CMR9 - 360 Image

Suggest Substitute Item

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Specifications

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Features

Voltage Rating: 120/277 V ac
Material: Plastic
Shape: Round

Material, Color, and Finish

Color: White
Lens Material: Plastic

Dimensions and Weight

Width: 4.55 in (Dia.)
Height: 1.55 in
Length: 4.5

Descriptions

Description: CEILING MNT 360 SENSOR LINE VOLT PIR
Long Description: Occupancy Sensor, 120/277 V ac, 800 W (120 V ac);1200 W (277 V ac);1500 W (347 V ac), 360 ° Coverage, Relay Switch, 4.55 in (Dia.) Width, 1.55 in Height, White, 5 yr Warranty, 6 oz
Product Type: Occupancy Sensor
Features: The CMR 9 Series Standard Range 360° occupancy sensor incorporates Passive Infrared (PIR) detection technology into an attractive line powered occupancy sensor that provides amazing sensitivity to small motions (e.g. hand movements) and excellent payback. The CMR 9 is an economical solution for providing automatic lighting control where a wall switch replacement sensor is not applicable. With an integrated line switching relay, the CMR 9 is perfect for applications where locating a power pack is difficult,
Short Description: Occupancy Sensor, 120;277 VAC, White
extra long description: LITH CMR 9 Ceiling Mount Sensor, Sm

Additional Information

media: Yes
coverage: 360 °
Power Rating: 800 W (120 V ac);1200 W (277 V ac);1500 W (347 V ac)
Switch Type: Relay Switch
package quantity: 96 PL
Warranty: 5 yr
Made in USA: yes
supply voltage: 120, 277
average life: 87,600
pallet quantity: 96
Power Source: Hardwired
dimmable: Yes

Manufacturer Information

Manufacturers Part Number: CMR9
Brand: sensorswitch
GTIN: 00745975808281
UPC: 745975808281

Taxonomies, Classifications, and Categories

Category Description: Commercial dimmers, motion sensors, & photo cells
Type: SENSOR

Packaging

Weight: 6 oz
Weight per each: 0.38
Carton: 1

Uses, Certifications, and Standards

Application: Cafeteria;Classroom;Closet/Storage Room;Conference Room;Examination Room;Hospital;Kitchen;Living Area;Locker Room;Open Office;Patient Room;Private Office;Restroom
standard: C-UL-US
Mounting: Flush Mount
environmental conditions: Indoor
