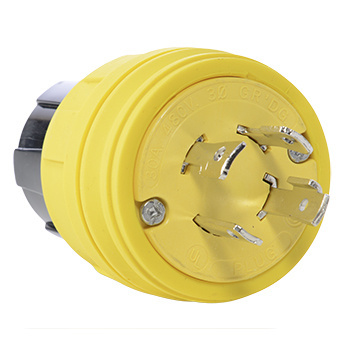

28W76 - TL Plug IP67 30A 3PH 480V L1630P

Legrand-Pass & Seymour

  • $59.33 (Each)
  • $59.33 (Each)

  • $593.30 (Per 10)

Availability: Call for Availability

QTY:
Each
Quick Specs
Catalog Number
28W76
Manufacturer
Legrand-Pass & Seymour
Manufacturer's Part Number
28W76
Description
TL Plug IP67 30A 3PH 480V L1630P
Locking Watertight Plug, 30AMP 3 480 Volt, Nema Configuration L16-30, Multipoint Sealing System Provides Environmental Protection Of: Nema 4, 4X, 6, 6P and IP67 Rated.
Slang Terms

Categories
Gen Purpose Wiring Devices - Plugs, Connectors, Inlets, Out
Classification
Residential Receptacles
UNSPSC
39121403 - Locking plug
UPC/GTIN
785007033519 / 00785007033519
Weight per unit
0.83 (lbs/each)
Price & Packaging
Minimum Order Quantity
1
Unit
$59.33 (Each)
Standard Packaging
$593.30 (Per 10)
Resources
Other Links


28W76 - Other

28W76 - Other
Images


28W76 - Large Image
Brochures


28W76 - Brochure
Features
Wire Size
12 - 6
Poles
3
Phase
3
amperage rating
30
Voltage Rating
480
Number of Wires
4
Material
Rubber
Descriptions
Product Type
TL Plug IP67 30A 3PH 480V L1630P
Description
TL PLUG IP67 30A 3PH 480V L1630P
extra long description
P&S 28W76 TL PLUG IP67 30A 3PH 480V
Long Description
Locking Watertight Plug, 30amp 3 480 volt, NEMA Configuration L16-30, multipoint sealing system provides environmental protection of: NEMA 4, 4X, 6, 6P and IP67 rated.
Special Features
Rated watertight for 1,500 psi high-pressure hosedown, P&S Turnlok® watertight plugs & connectors feature rugged construction, multiple seals to ensure protection against the environment and ease of installation.
Additional Information
Cord Type
12/4 S to 8/4 S, 6/4 MSHA, .640" min to .930" max
Manufacturer Information
Manufacturers Part Number
28W76
Brand
LEGRAND-PASS & SEYMOUR
GTIN
00785007033519
UPC
785007033519
Taxonomies, Classifications, and Categories
Category Description
Residential receptacles
Type
LOCKING PLUG
Packaging
Weight per each
0.83
Carton
1
Package
10
Uses, Certifications, and Standards
Application
High-pressure washdowns. Particle build-up. Condensation. Corrosive substances. Food and beverage processing plants can be harsh, challenging environments. Fortunately, we have a full menu of electrical devices that keep things running smoothly while protecting people and equipment. IEC PIN & SLEEVE DEVICES Watertight Plugs & Connectors ¦ Thermoplastic elastomer body resists water, oils, lubricants and soaps while maintaining NEMA 4, 4X, 6, 6P, and IP65, 66, 67 ratings ¦ Ideal for washdown areas — rated wa
nema rating
L16-30P
standard
UL Listed, CSA Listed
environmental conditions
Moisture Resistance NEMA 4, 4X, 12, 6, 6P/IP65, 66, 67 (Plug & Connector only) Flammability UL94V0 (boxes & wiring device interiors) Operating Temperature -40°C (without impact) to +60°C continuous UV resistance All exposed material s are UV stabilized
