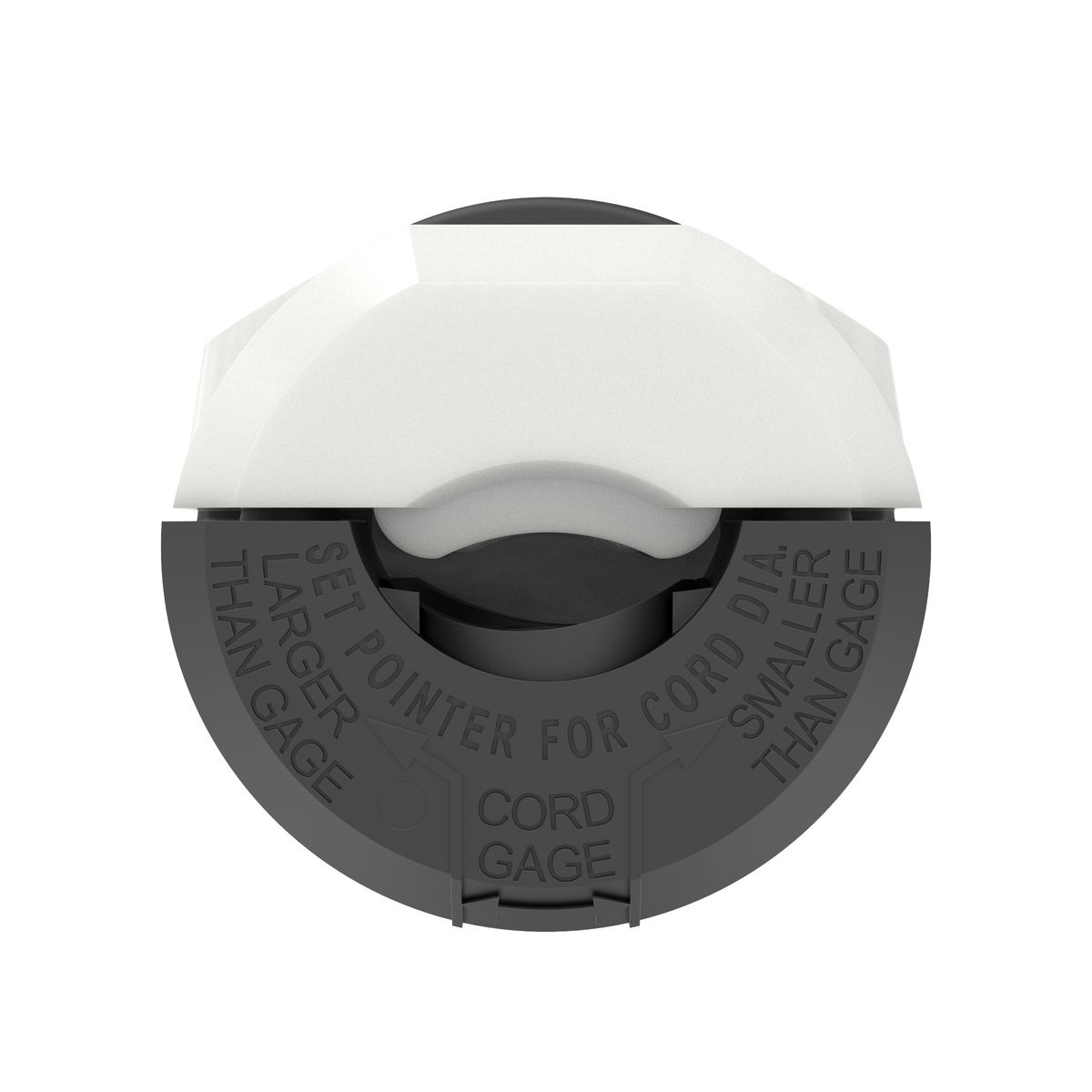

HBL5266C - Plug, 15A 125V, 5-15P, B/W

Availability: Call for Availability

Buy Now

QTY:

Each

$1,855.13Per 100

Pass & Seymour/Legrand
STR BLD Plug 3W 15A 125V B&W

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Quick Specs

Catalog Number: HBL5266C Vendor Code HWD
Manufacturer: WDK
Manufacturer's Part Number: HBL5266C
Description: Plug, 15A 125V, 5-15P, B/W
Straight Blade Device Plug, 15 A, 125 V Ac, 2 Poles, 3 Wires, Black/White, -40 °C Operating Temperature, +75 °C Operating Temperature, Screw/Clamp Terminal, 1.527 In Diameter, Cord Mounted, 1.968 In Length, #18 to #8 Awg (Copper Conductor) Wire Size, Impact and Chemical Resistant, 0.15 LB
Slang Terms: Suggest a New Term
Categories: Gen Purpose Wiring Devices - Plugs, Connectors, Inlets, Out Mark as Incorrect
Suggest a New Category
Classification: Commercial Cord Connectors
UNSPSC: 39121402 - Electrical plugs
UPC/EAN/GTIN: 783585173009 / 0783585173009 / 00783585173009
Weight per unit: 0.15 (lbs/each)

Price & Packaging

Resources

Edit Mode: Please login to suggest improvements for this item.

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Features

Wire Size: #18 to #8 AWG (Copper Conductor)
Current Rating: 15 A
Voltage Rating: 125 V ac
Material: Nylon (Housing/Cord Clamp, Blade Holder);Clear Polycarbonate (Terminal Retainer);Brass (Blades, Terminal Screws);Nickel Plated Steel (Terminal Clamp, Assembly Screws)
Terminal Type: Screw;Clamp
amperage rating: 15
Wattage: 1875
Poles: 2-Pole
Number of Wires: 3-Wire
connection: Screwed Terminal
Phase: 1

Material, Color, and Finish

Dimensions and Weight

Descriptions

Product Type: Straight Blade Device Plug
Description: PLUG, 15A 125V, 5-15P, B/W
Long Description: Straight Blade Device Plug, 15 A, 125 V ac, 2 Poles, 3 Wires, Black/White, -40 °C Operating Temperature, +75 °C Operating Temperature, Screw/Clamp Terminal, 1.527 in Diameter, Cord Mounted, 1.968 in Length, #18 to #8 AWG (Copper Conductor) Wire Size, Impact and Chemical Resistant, 0.15 lb
Features: Straight Blade Devices, Male Plug, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 15A125V, 5-15P, Black and White, Single Pack.
Short Description: Straight Blade Device Plug, 15 A, 125 VAC, Black/White
Special Features: Vari-Size Adjustable Cord Clamp;Fast Lead Assembly Screws;Beveled Housing Prevents Snagging
extra long description: HWDK HBL5266C PLUG, 15A 125V, 5-15P

Additional Information

Mounting Type: Cord Mounted
Minimum Operating Temperature: -40 °C
Maximum Operating Temperature: +75 °C
Resistance Properties: Impact and Chemical Resistant
package quantity: 1 CT;10 PK
Standards Met: UL 498 Listed;UL FS WC596;CSA Certified C22.2;Federal Specification
pallet quantity: 3600
Cord Type: All Portable

Manufacturer Information

Taxonomies, Classifications, and Categories

Packaging

Uses, Certifications, and Standards

nema rating: NEMA 5-15P
Application: Industrial
Mounting: Cord
standard: CSA Certified to C22.2 No. 42 File 280;Fed. Spec. W-C596G;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
environmental conditions: Indoor Dry unless protected by additional means
